DYNO SPECIFICATION
Title

SPECIFICATION

INSTRUMENTATION

Up to 800 kW (1070hp) transient acceleration load for power runs

500 kW (670hp) steady state continuous load for mapping

Linked 4 wheel drive design

Adjustable wheelbase

Ultra low clearance

Four 600mm diameter knurled rollers

Custom-built viewing room (not available whilst Covid-19 social distancing measures are in place)

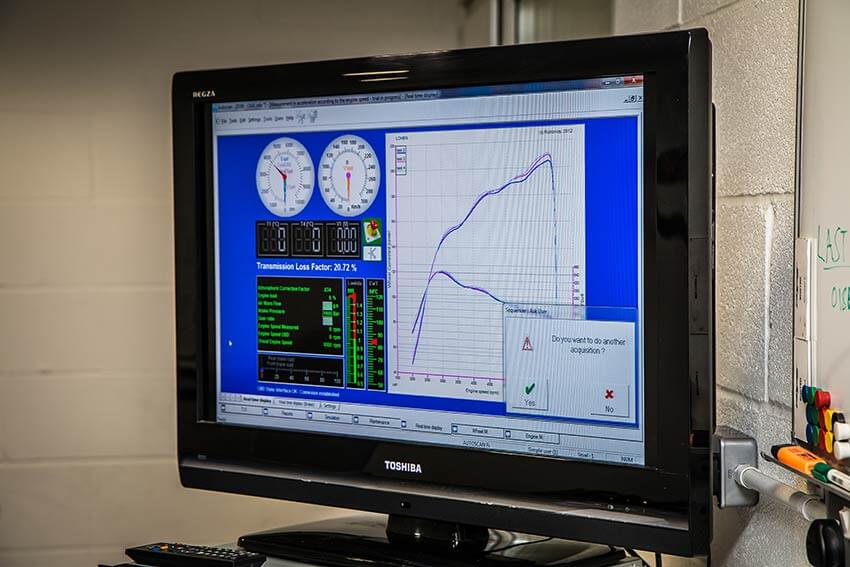

  • Autoscan measurement & analysis software. Featuring:
    • Variable load cycles
    • Over-run transmission power loss measurement
    • In-cell ‘weather station’ for atmospheric correction
  • Bluetooth OBDII connectivity for access to vehicle data such as
    • Boost
    • Engine Temperature
    • Intake Temperature
    • Mass Air Flow (MAF) is available
  • High speed wide-band lambda air/fuel ratio (AFR) monitor

VEHICLE DETAILS

VENTILATION
  • Wheelbase Minimum 1.95m - Maximum 2.85m
  • Tyre span widths
    • Inside minimum 1.10m
    • Outside maximum 2.12m
  • Ground clearance:
    • 85mm - with retractable steady rollers
    • 30mm - without steady rollers
  • Height 2.25m maximum
  • Weight 2800kg
  • 25,000 m3/H intake and extraction fans with variable speed control
  • 45,000 Cubic m/H main radiator fan
  • 5000 m3/H twin-bank exhaust gas extraction system
  • Supplementary fans for oil coolers/rear engined vehicles
