LOHEN MINI custom R56

GEN2 R56 MINI

Enquire

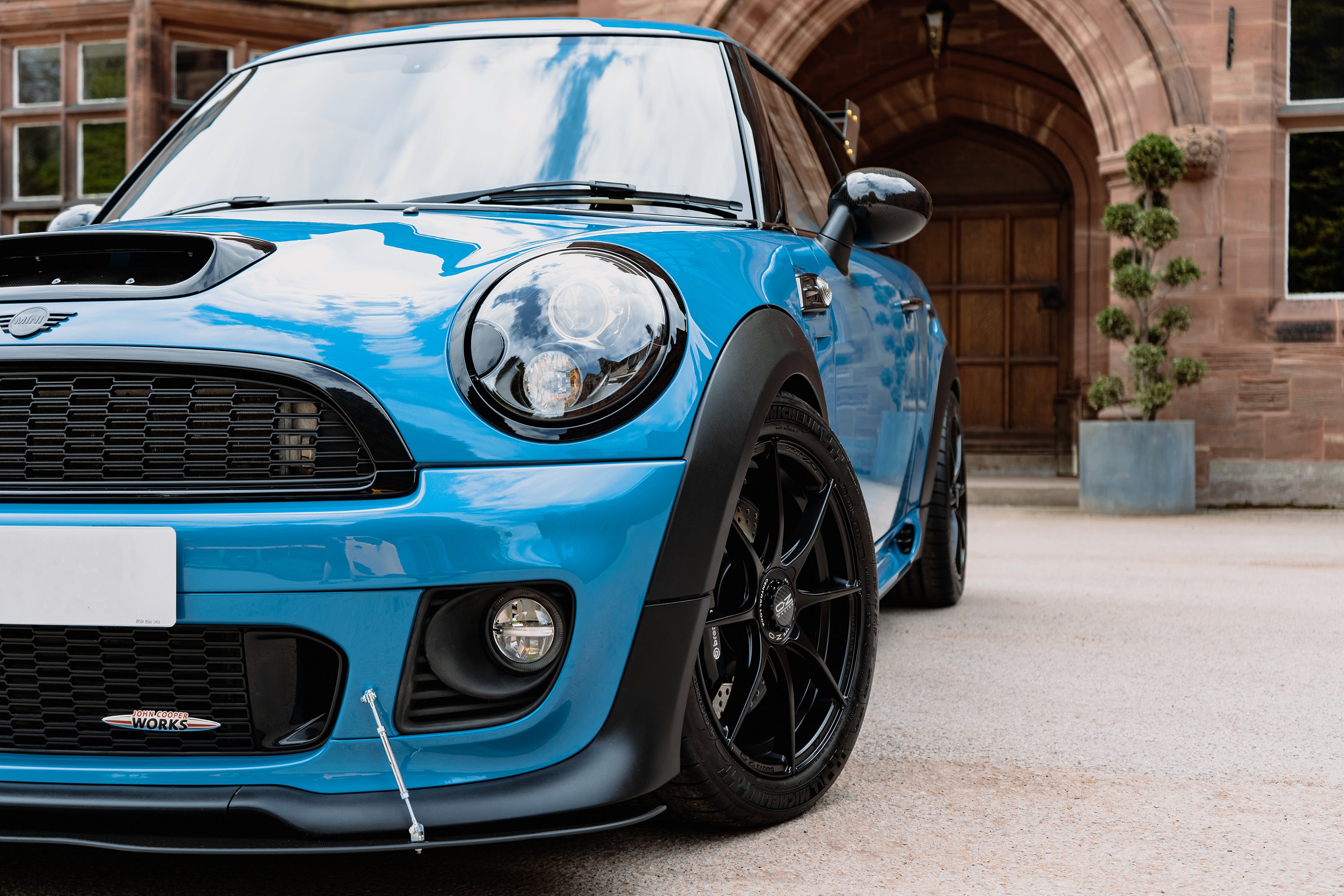

Blue R56 MINI Hatch John Cooper Works with Oz wheels and Brembo brakes parked for a photo shoot

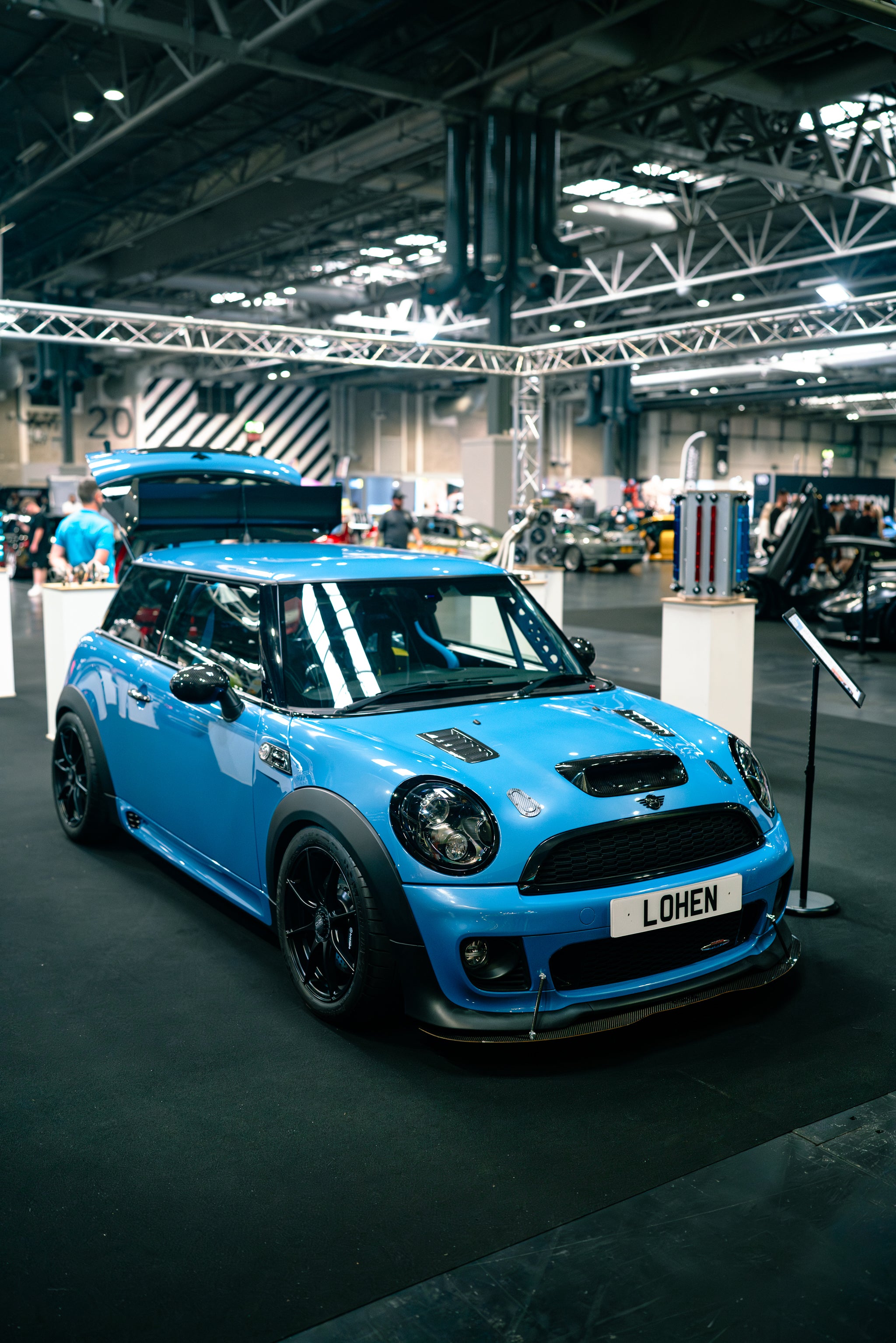

Custom 300bhp MINI R56 John Cooper Works by Lohen on the stall at Gravity show 2025 in Birmingham UK

Race Ready R56 - Highlights

owen developments hybrid turbo

supertech pistons, con rods & valve train.

stage 3 ecu re-map

brembo gt big brake kit

oz racing hlt wheels

custom fia motorsport approved roll cage

moton suspension

rsi c6 carbon front splitter

stripped down R56 MINI ready to be painted a custom colour.

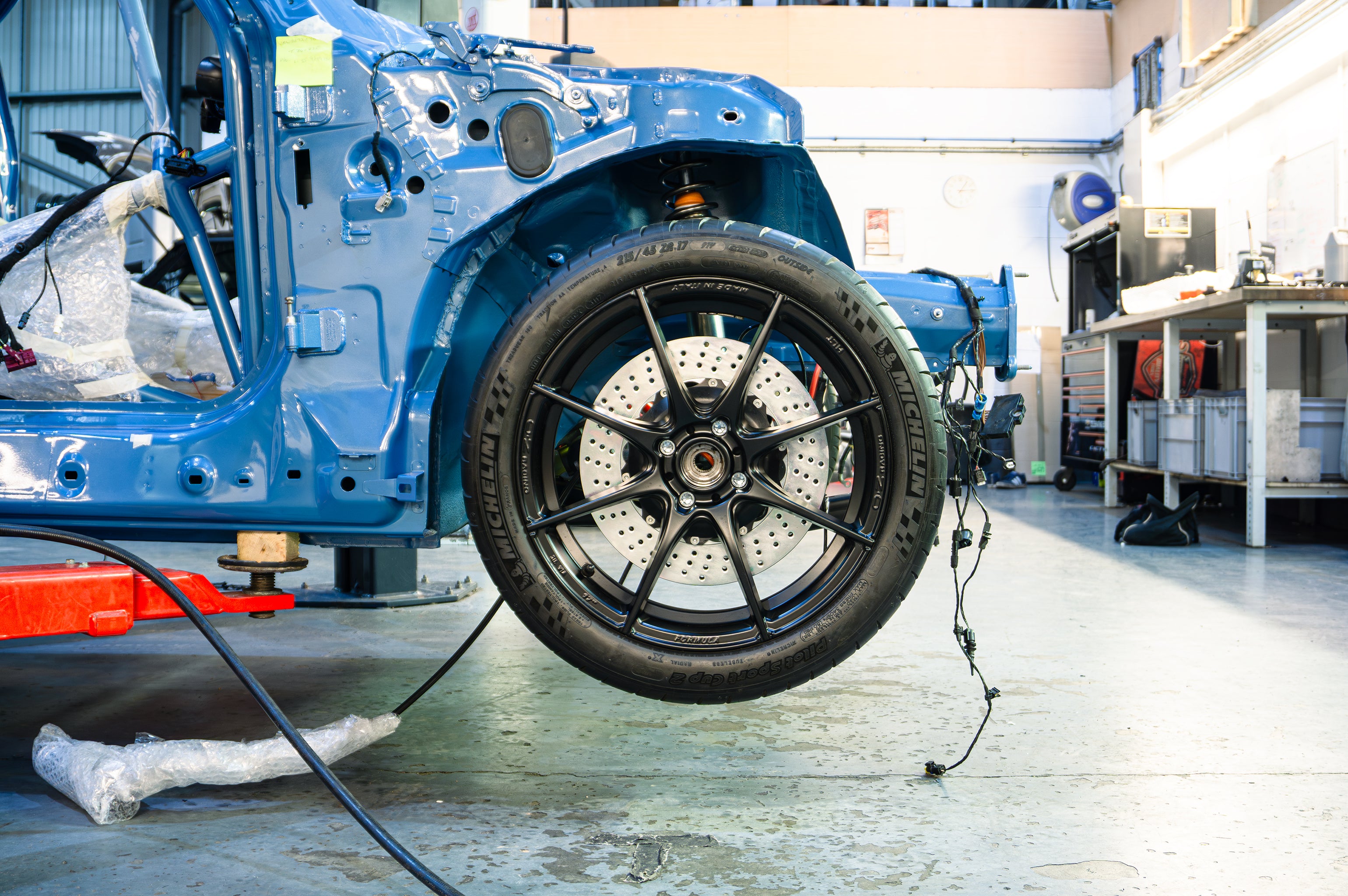

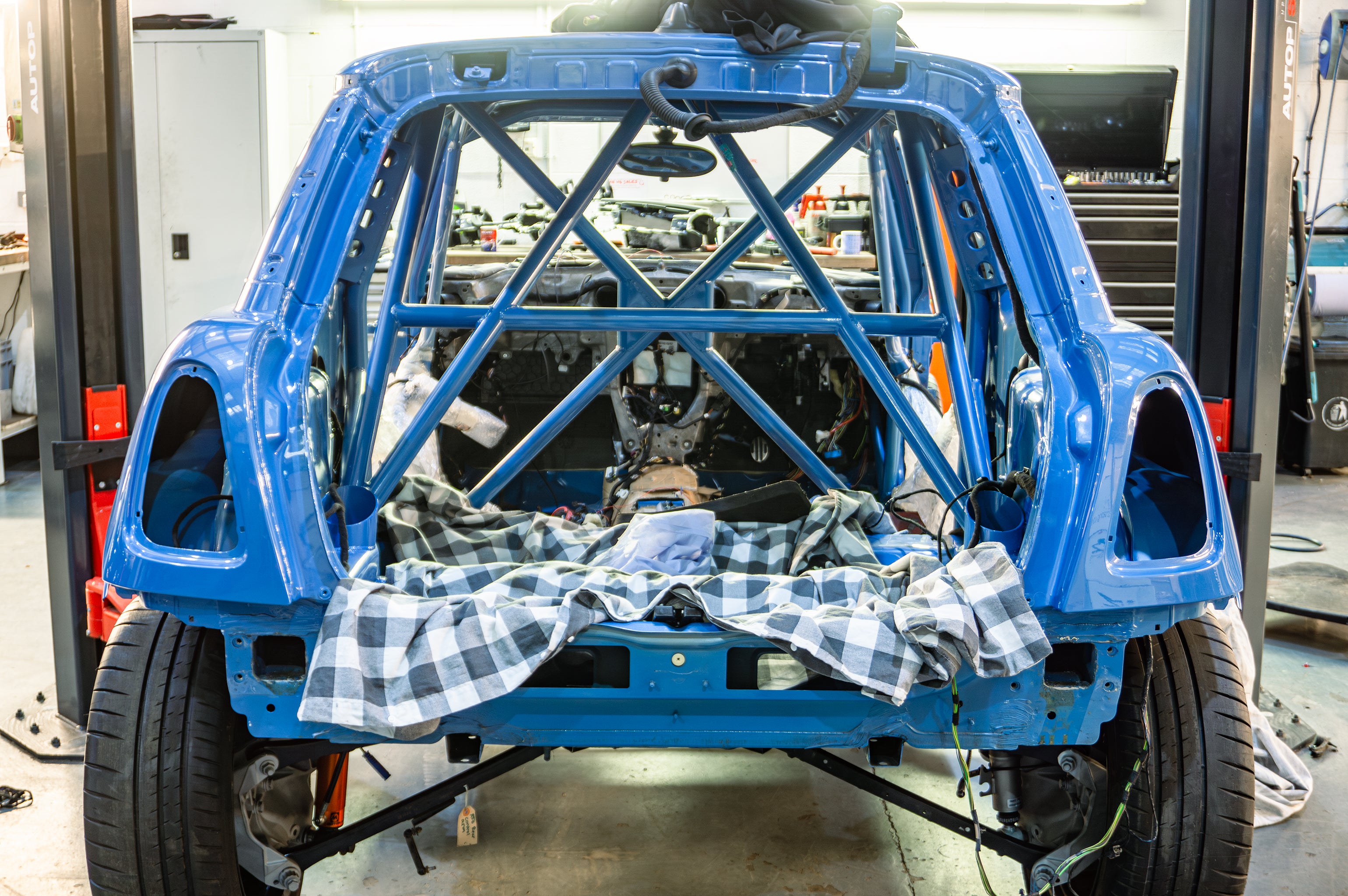

Carousel of images of an R56 MINI getting stripped down ready for painting and then it freshly painted on the ramp at Lohen. AP racing big brake kit fitted and carbon panels.

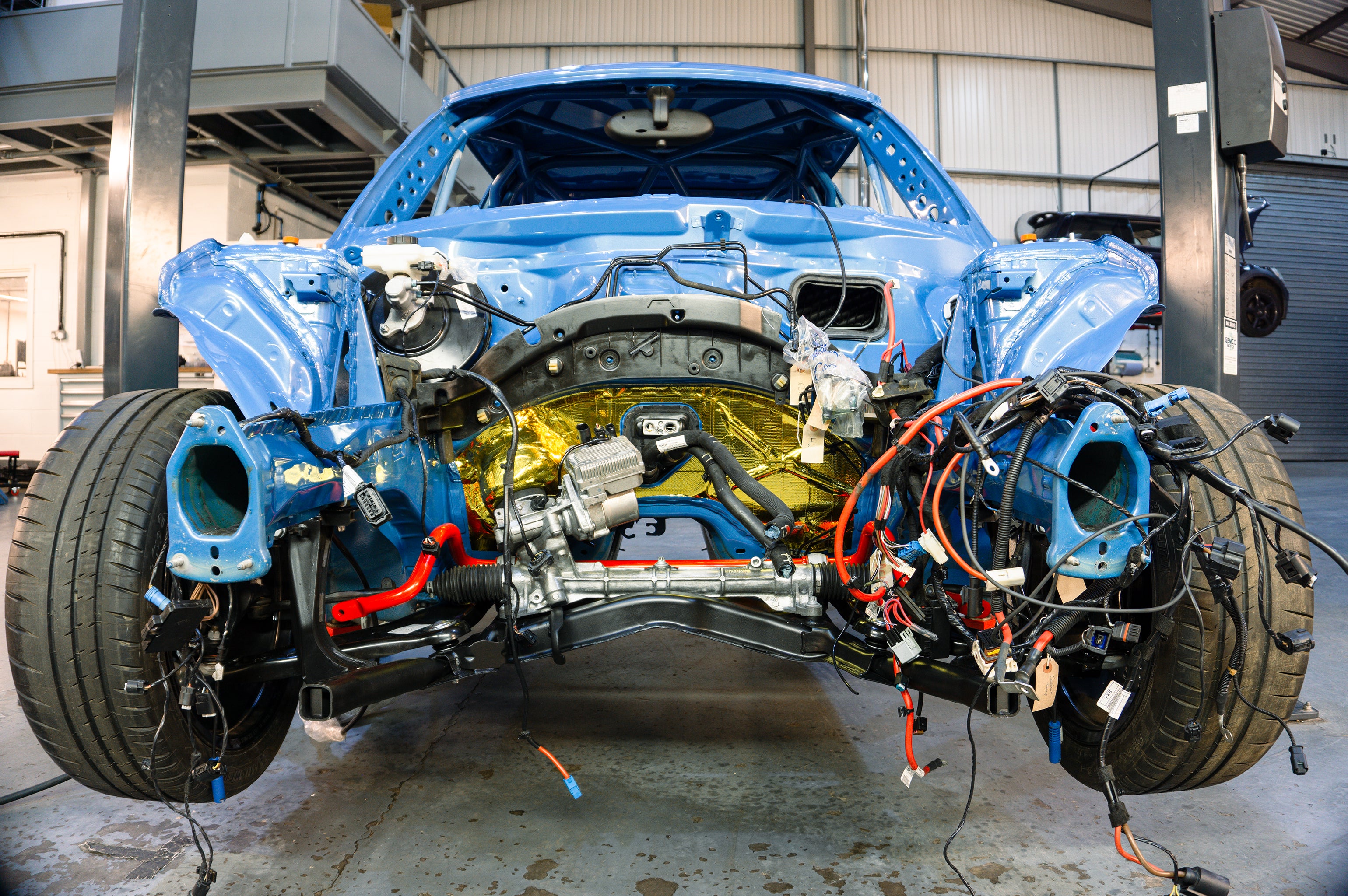

Lohen vehicle technician preparing a MINI R56 for rust treatment underneath.

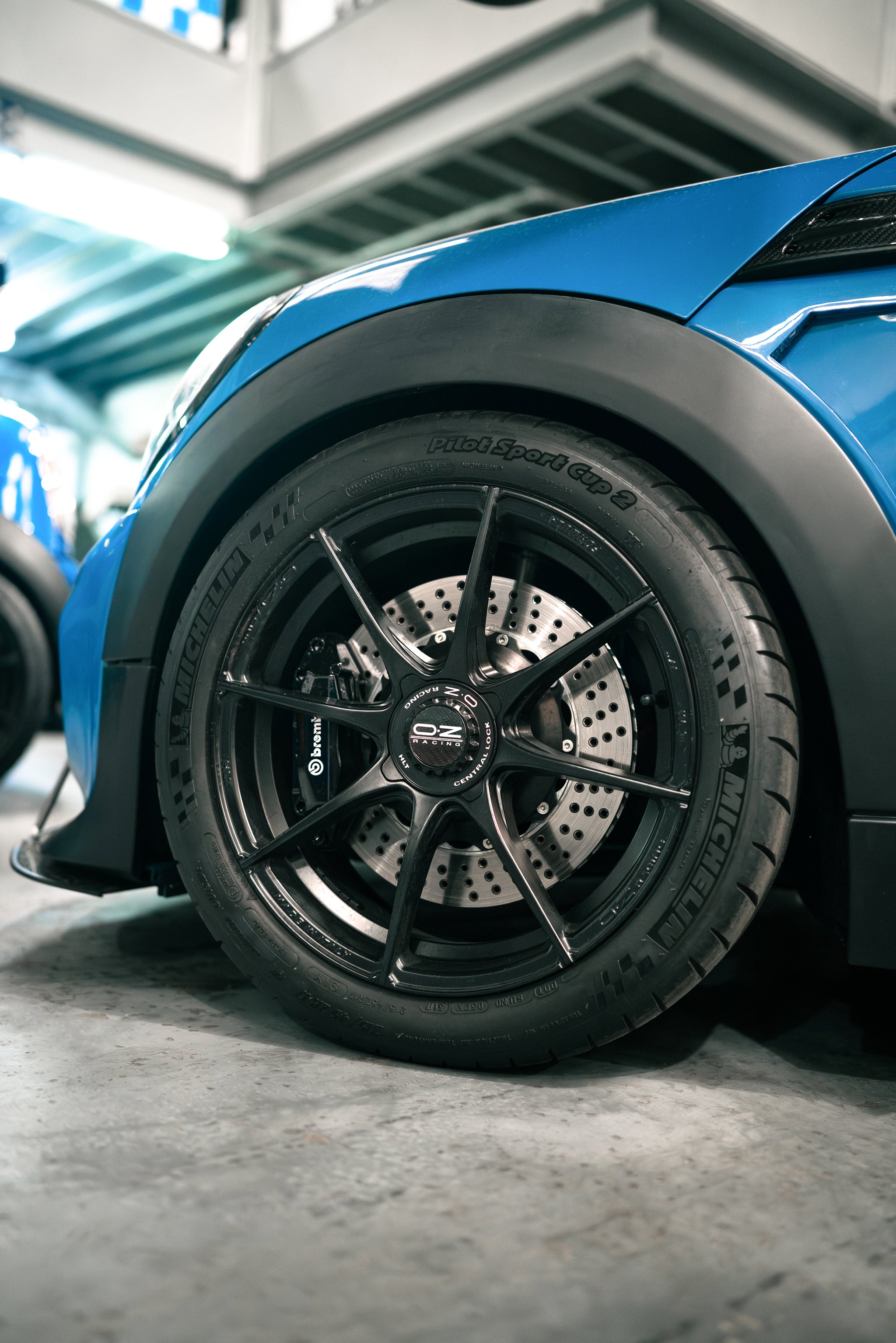

brakes

The brake callipers are Brembo as are the drilled disks. They've got huge stopping power and aesthetically they the perfect set for the OZ Formula HLT wheels and Michelin Pilot Sport Cup 2 tyres! Braided hoses from Goodridge are filled with Motul RBF 660 racing brake fluid to keep the pads moving with precision.

Oz Racing Wheels and brembo brake kit with drilled disks on a Mini R56 JCW

Induction

The induction kit from AEM is a power enhancing modification that utilises the MINI's bonnet scoop to feed cold dense oxygen-rich air to the combustion chamber. This MINI with it's Owen Developments hybrid turbo and Config four N18 Crate engine will be demanding more oxygen to create power and the AEM induction kit will be there to meet the demand.

We also fitted the AEM front strut brace to strengthen the chassis helping with the car's handling under hard cornering. As you can see it makes space for the air filter box and doesn't get in the way of the bonnet scoop.

GET YOUR AEM kit NOW

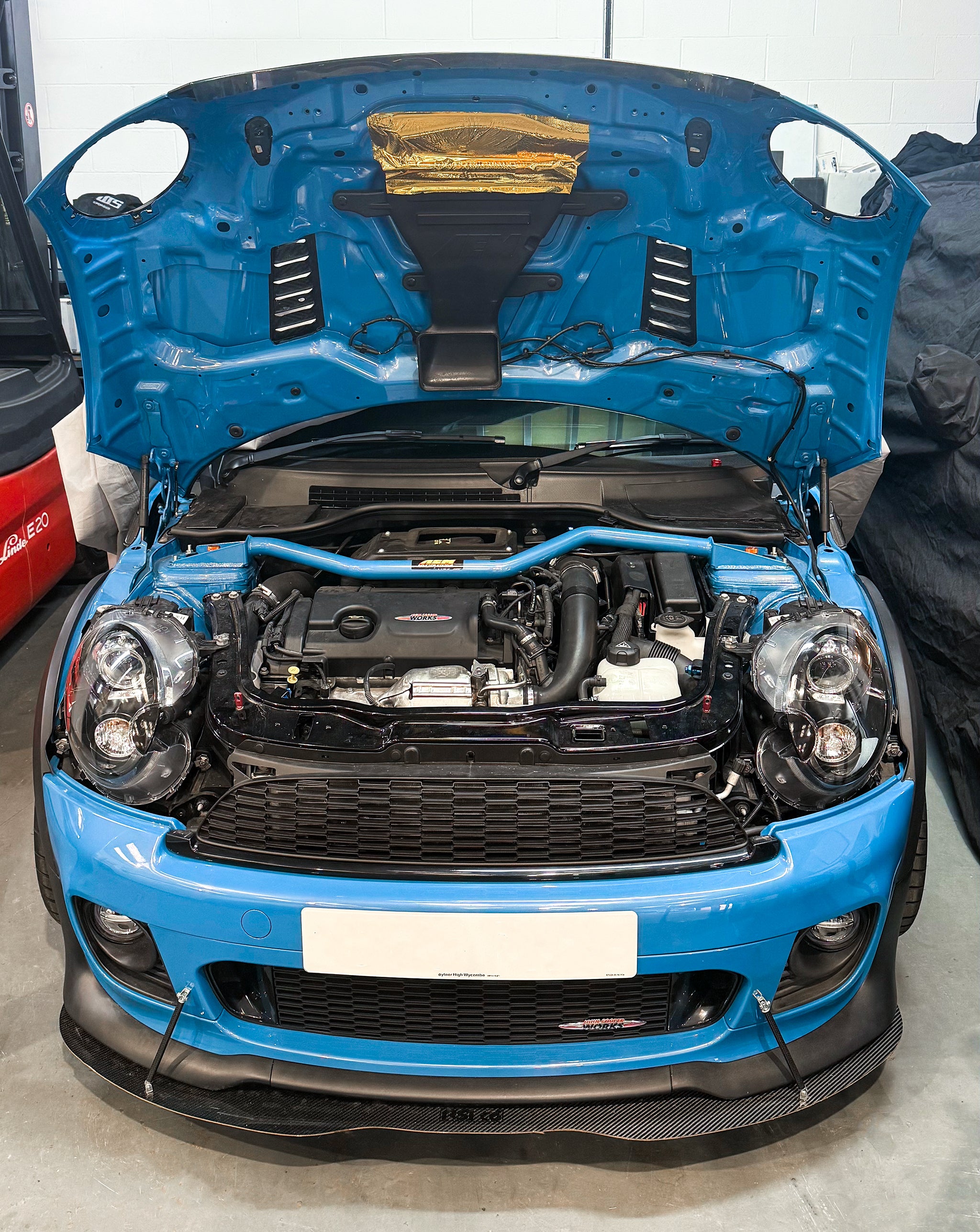

Mint Green R56 MINI WIth AEM induction kit and Airtec intercooler

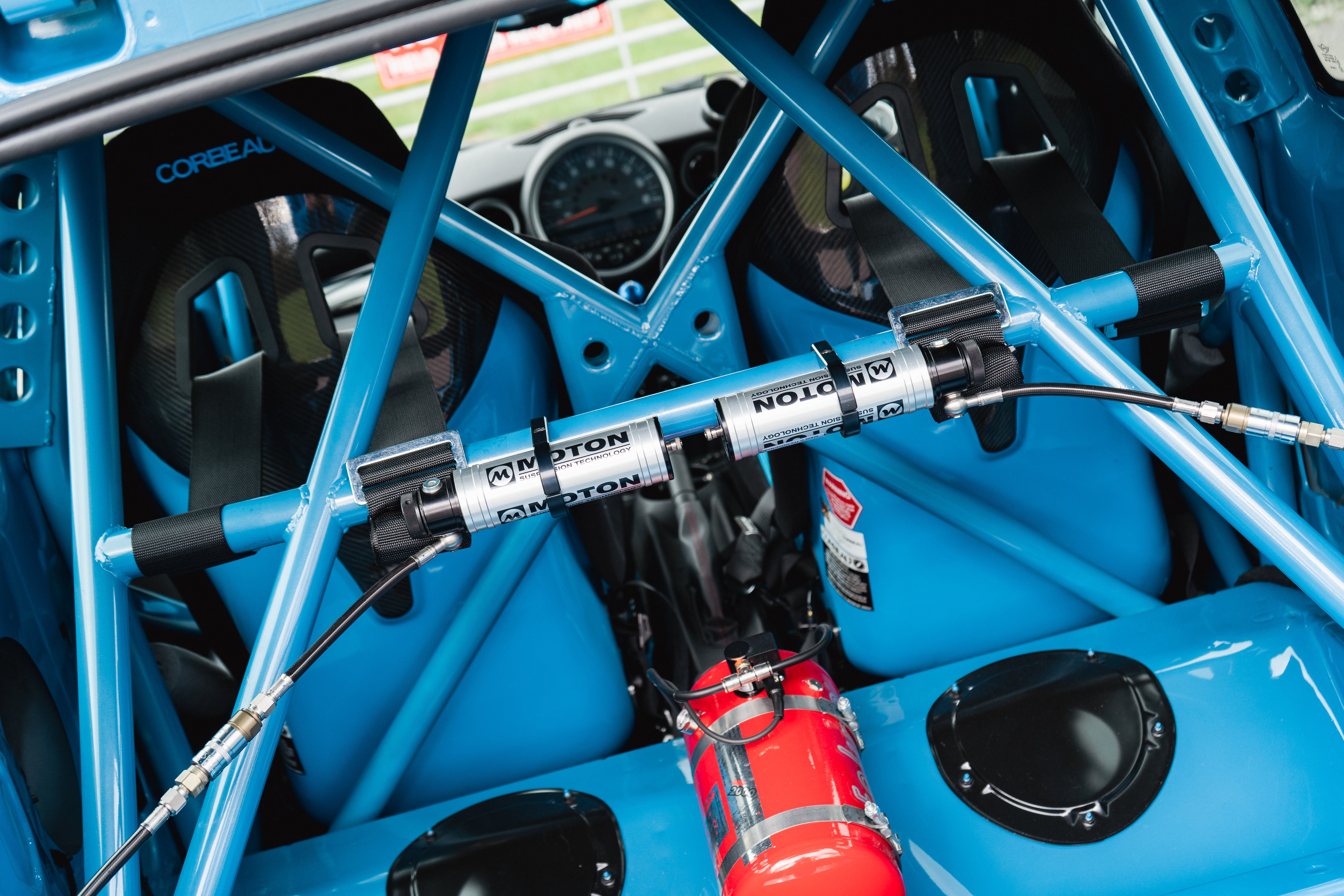

custom roll cage in a MINI R56 JCW with Moton suspension damper controls mounted on the cage. Corbeau seats visable from the back.

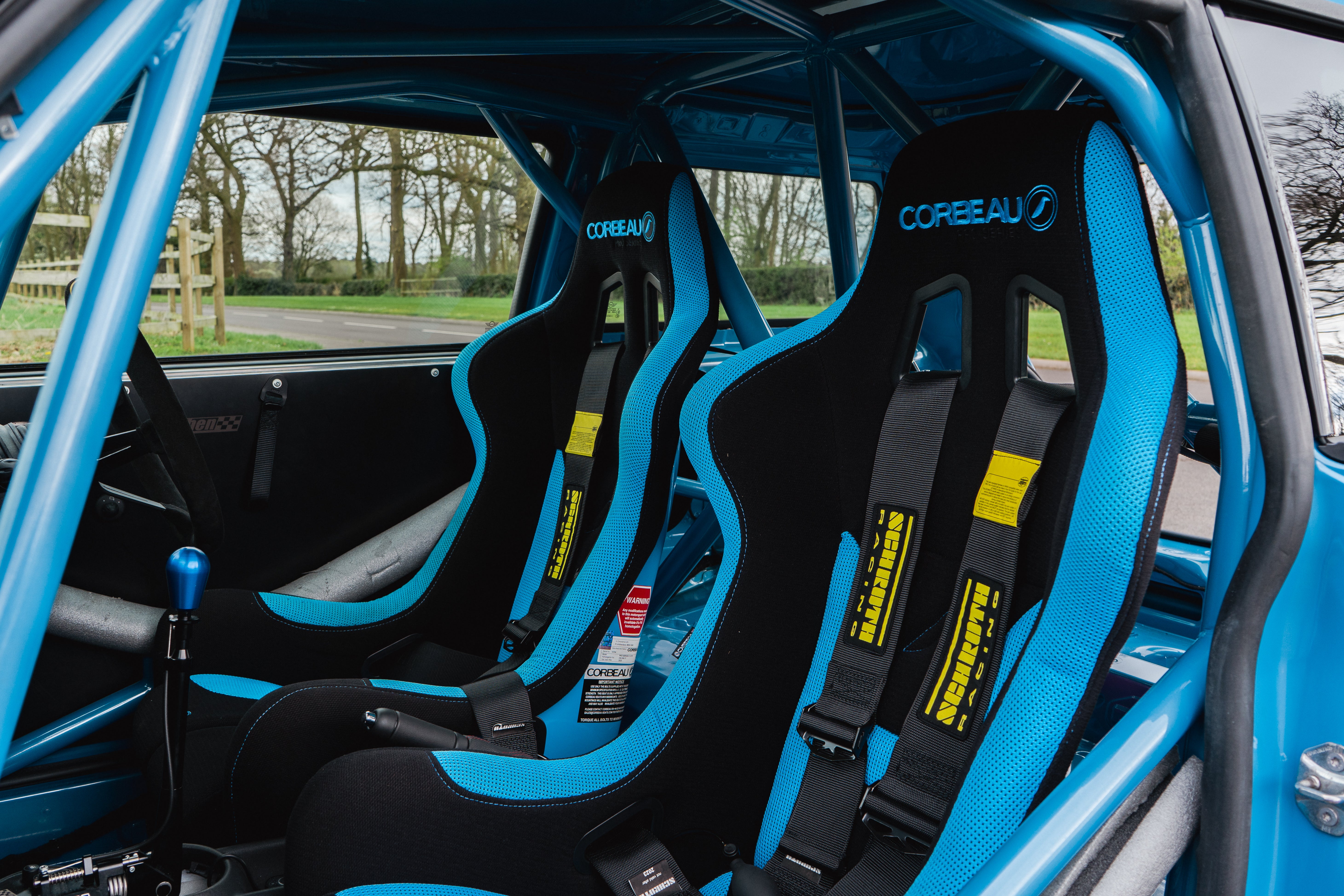

Corbeau bucket seats in black with blue details. Rollcage is painted a matching blue, as is the cars chassis and gear knob.

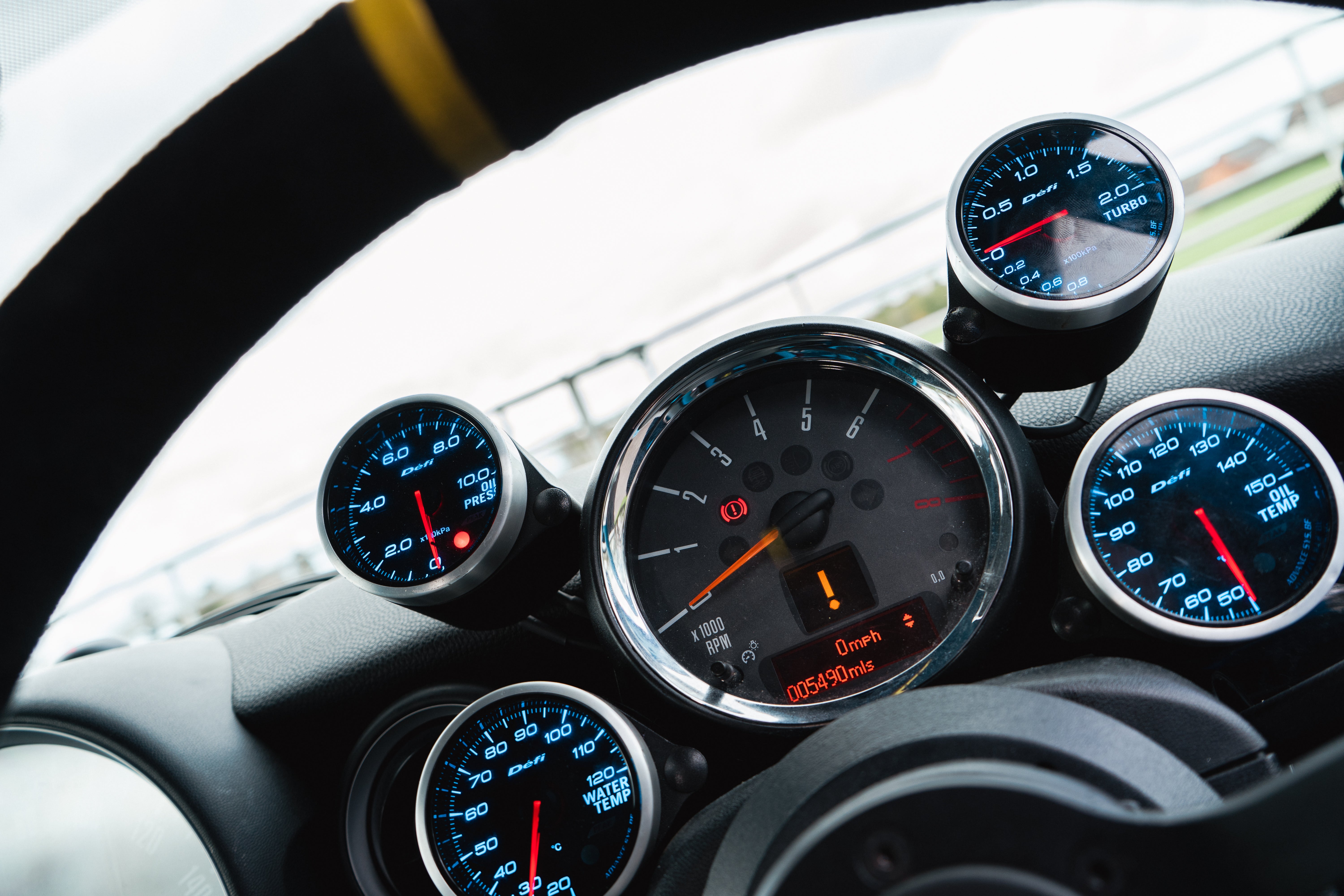

R56 with custom Defi guages around the rev counter. Water temperature guage, Oil Temp guage, boost pressure and oil pressure guiages all visable.

close up of the water temperature guage in the JCW R56 MINI

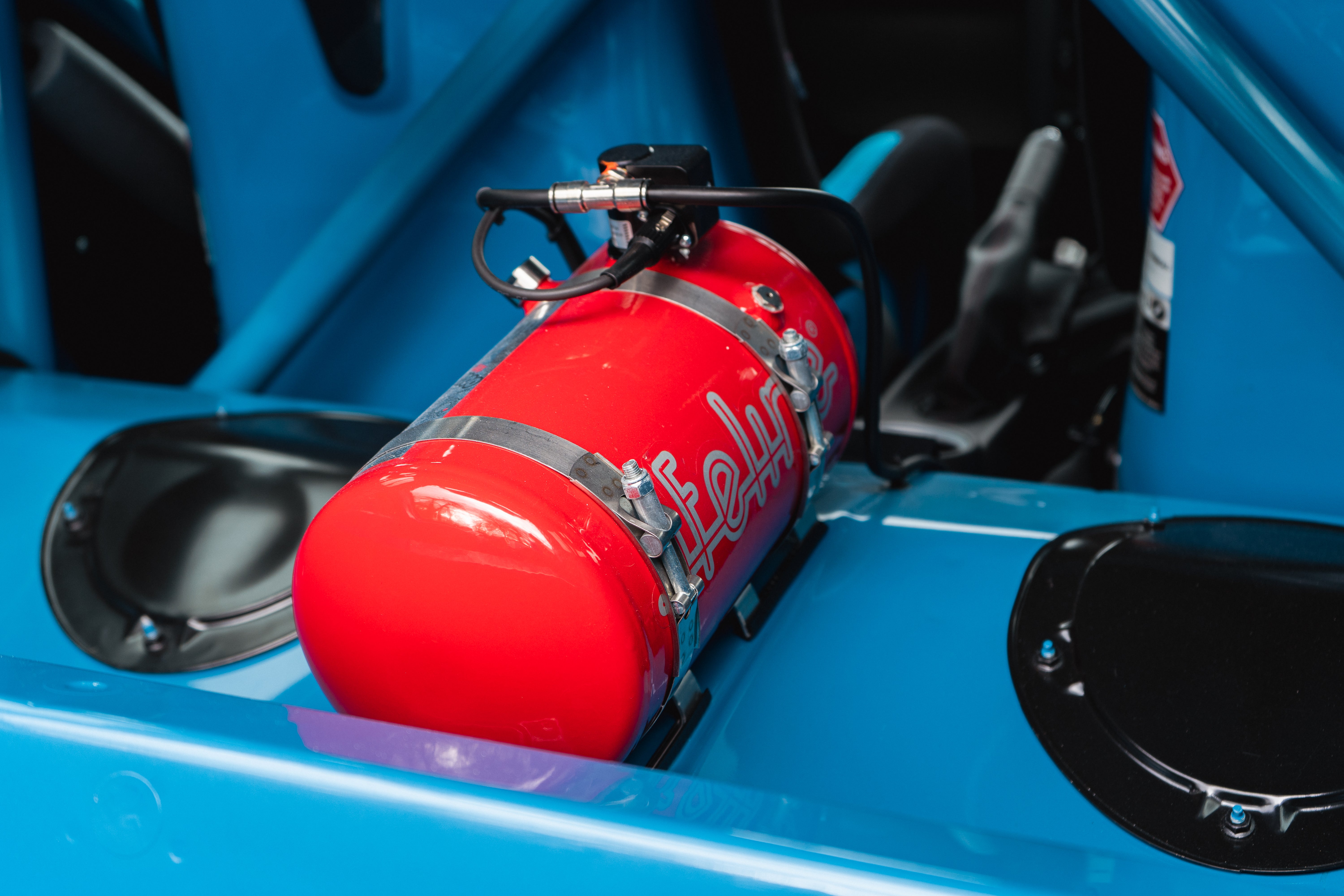

Race MINI R56 JCW with safety equipment to FIA standards

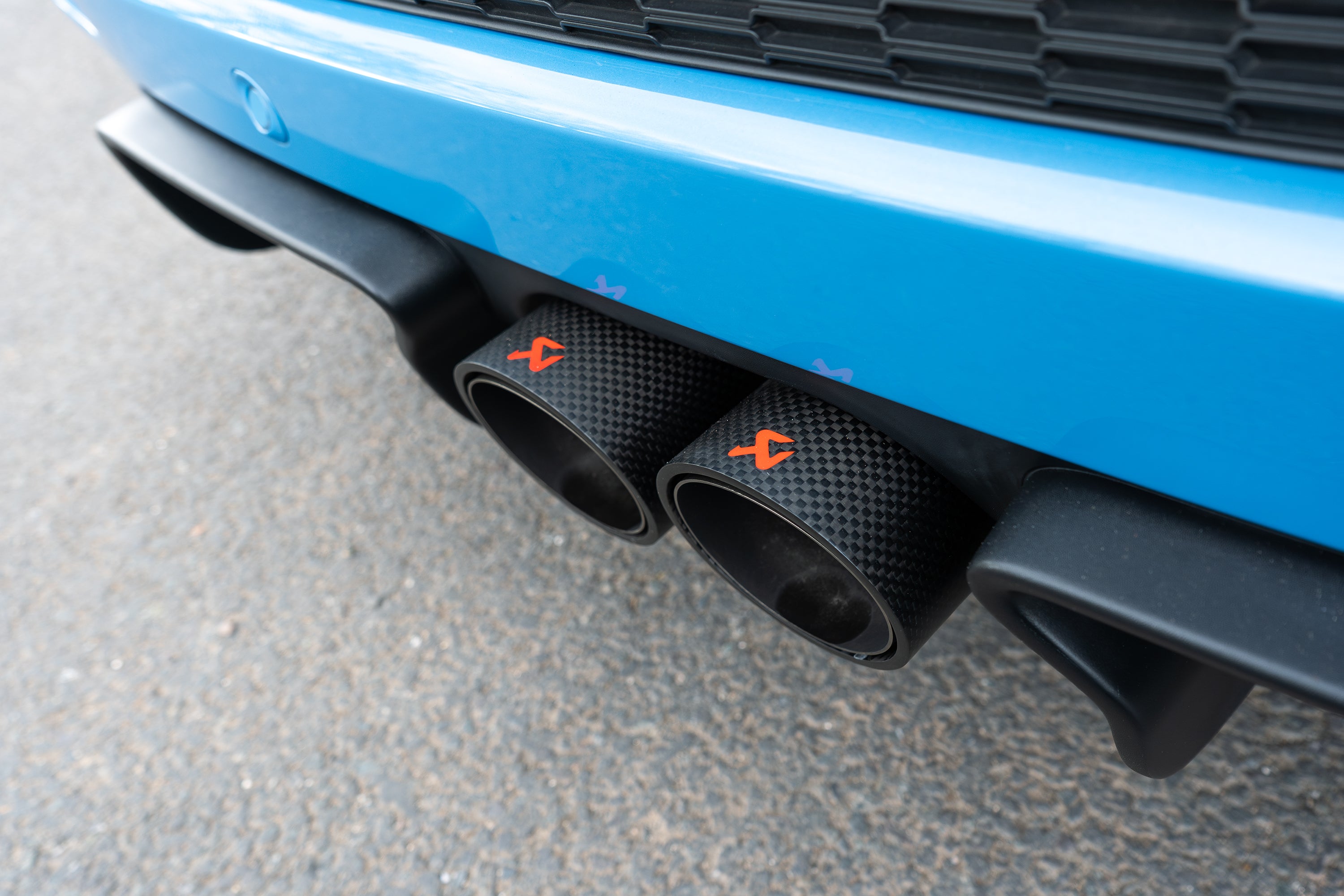

Akrapovic exhaust on a MINI Hatch John cooper works

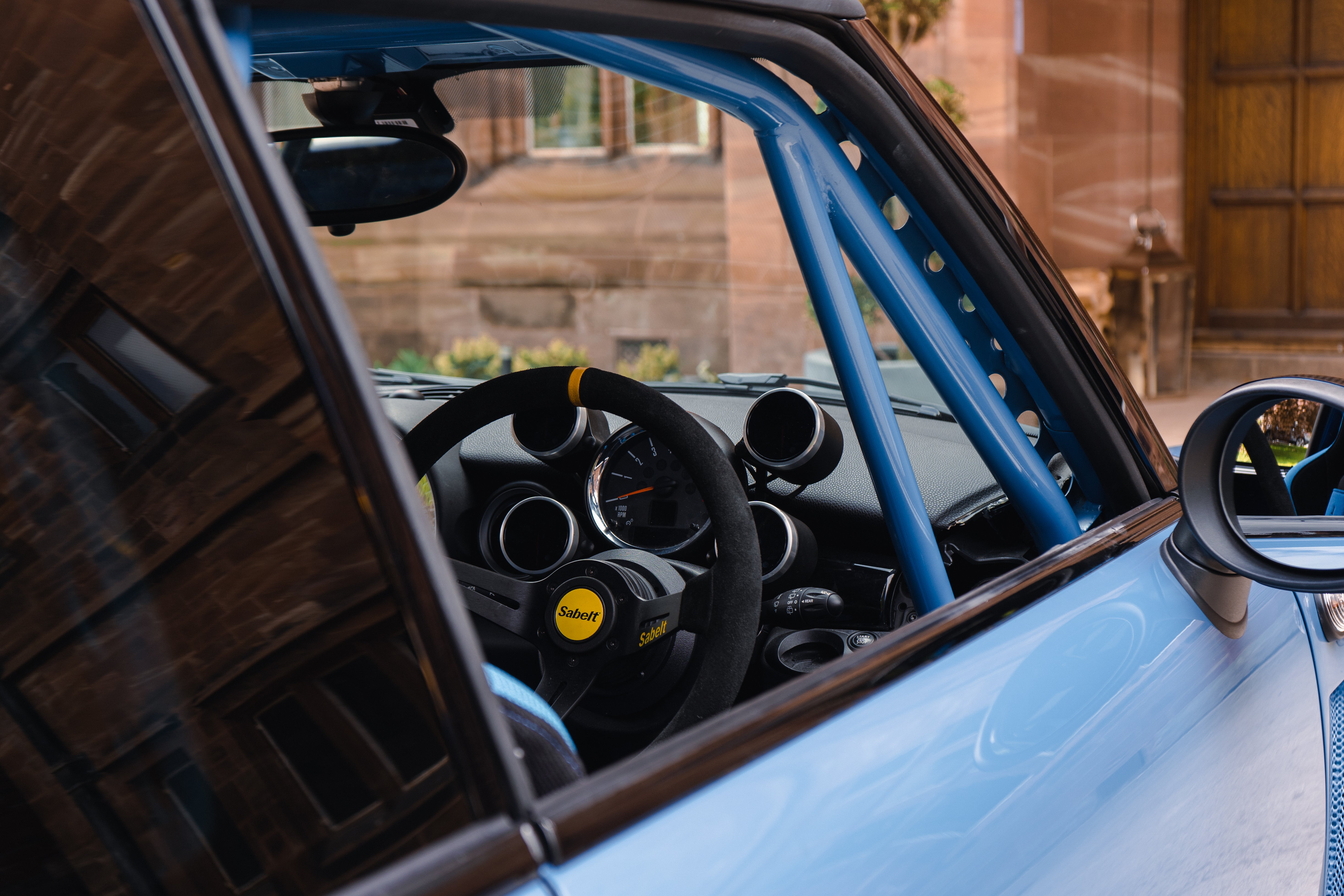

racing steering wheel and roll cage visible through the MINIs window

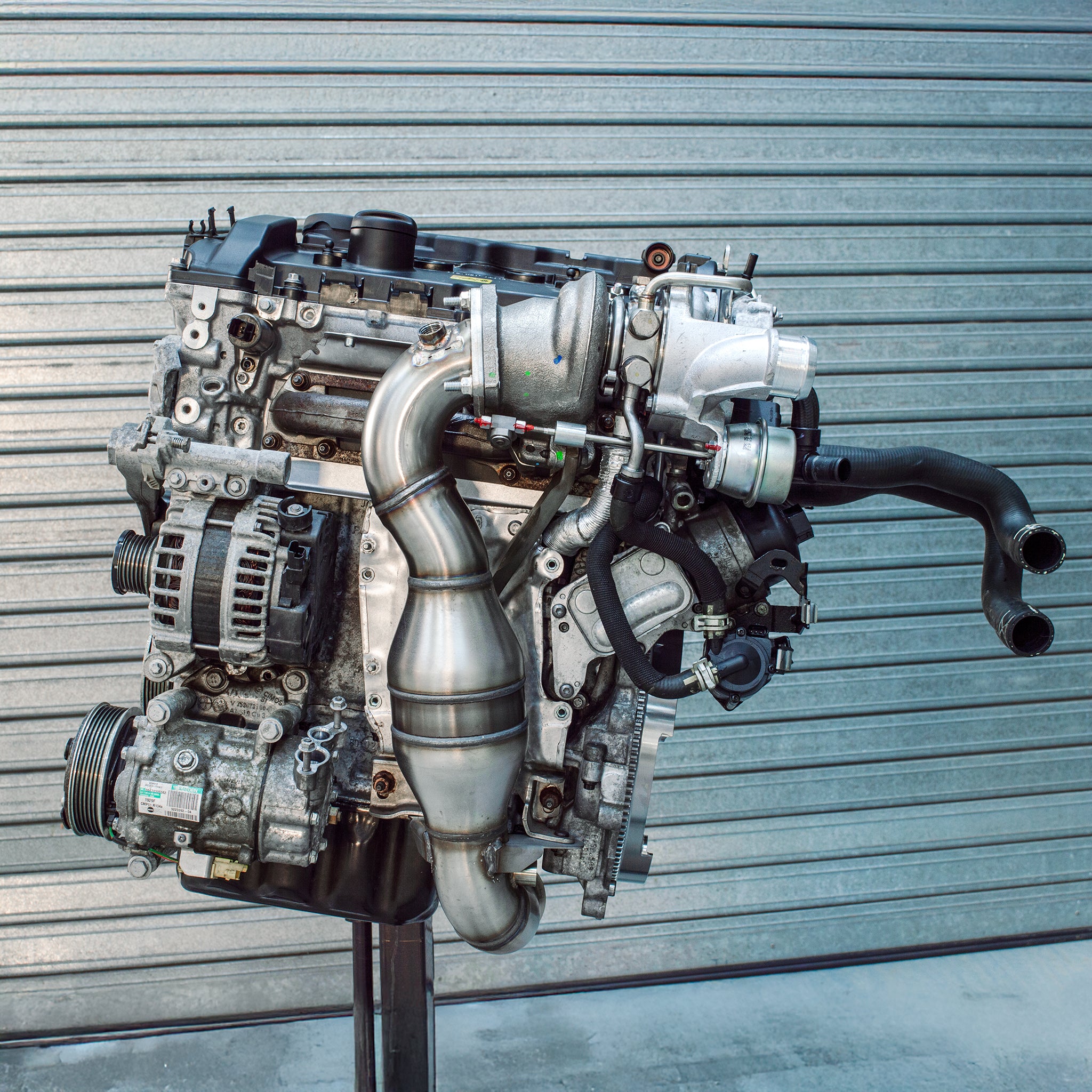

Lohen N18 Crate engine on a stand with sports cat down pipe, light weight flywheel and owen developments hybrid turbo visably attached.

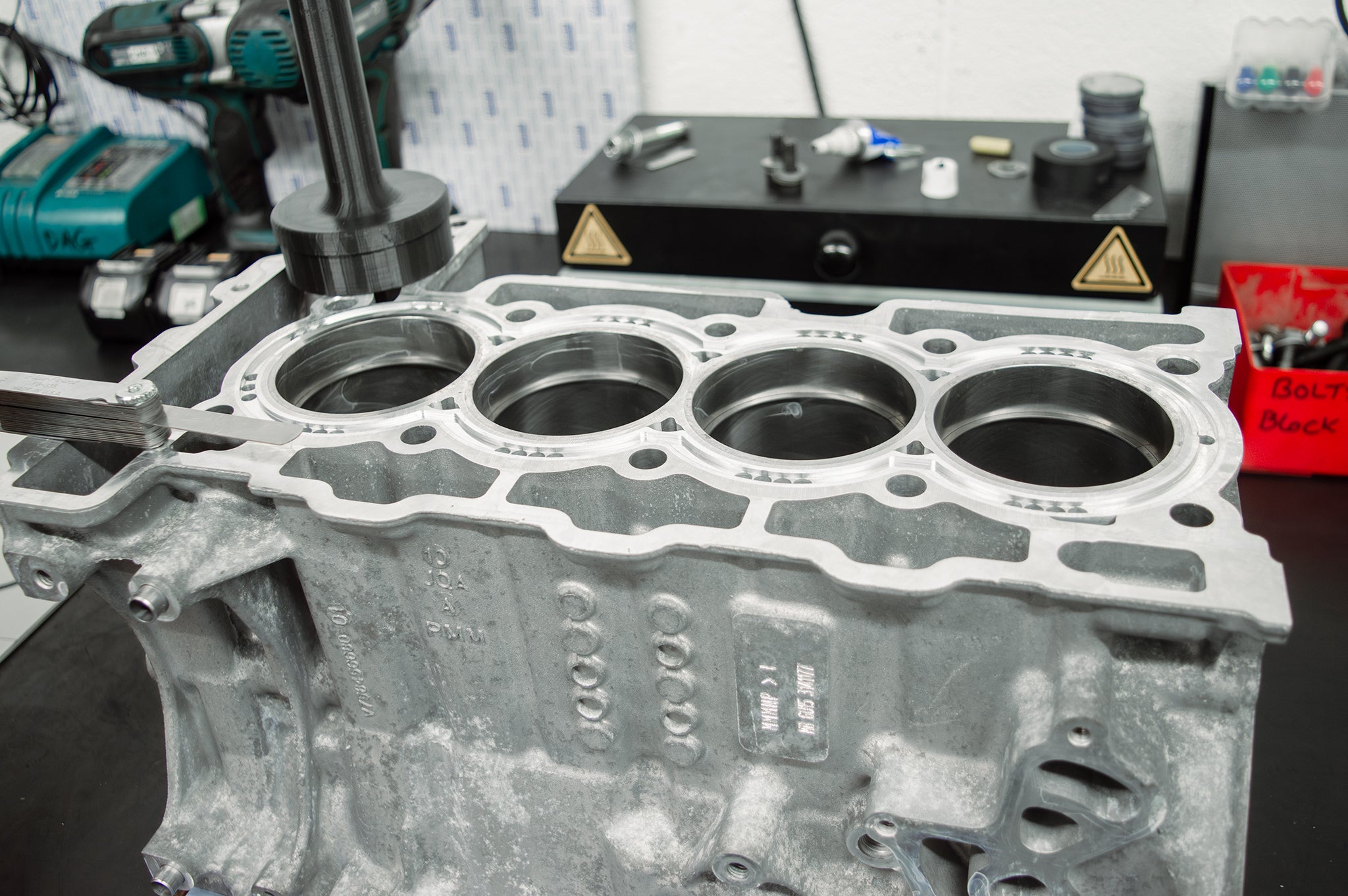

LOHEN N18 Engine

We gave this R56 MINI our Config 4 N18 crate engine for 300+ bhp capabilities. Features include:

Supertech forged Pistons, Con Rods & Bearings

Closed deck using Darton Sleeves

ARP Studs & Bolts

Supertech forged valve train

All the details here

OD Hybrid TURBO

To get over the 285bhp mark on an R56 MINI you'll need a turbo upgrade. Here's the bolt-on Owen Developments Hybrid Turbo.

The exterior housing remains the same size so no need to worry about fitment. Its the internals - a larger turbine wheel and larger compressor that are giving you more power.

GET YOURS NOW

Mini R56 Turbo upgrade to an Owen Developments Hybrid turbo for N18 MINI engine

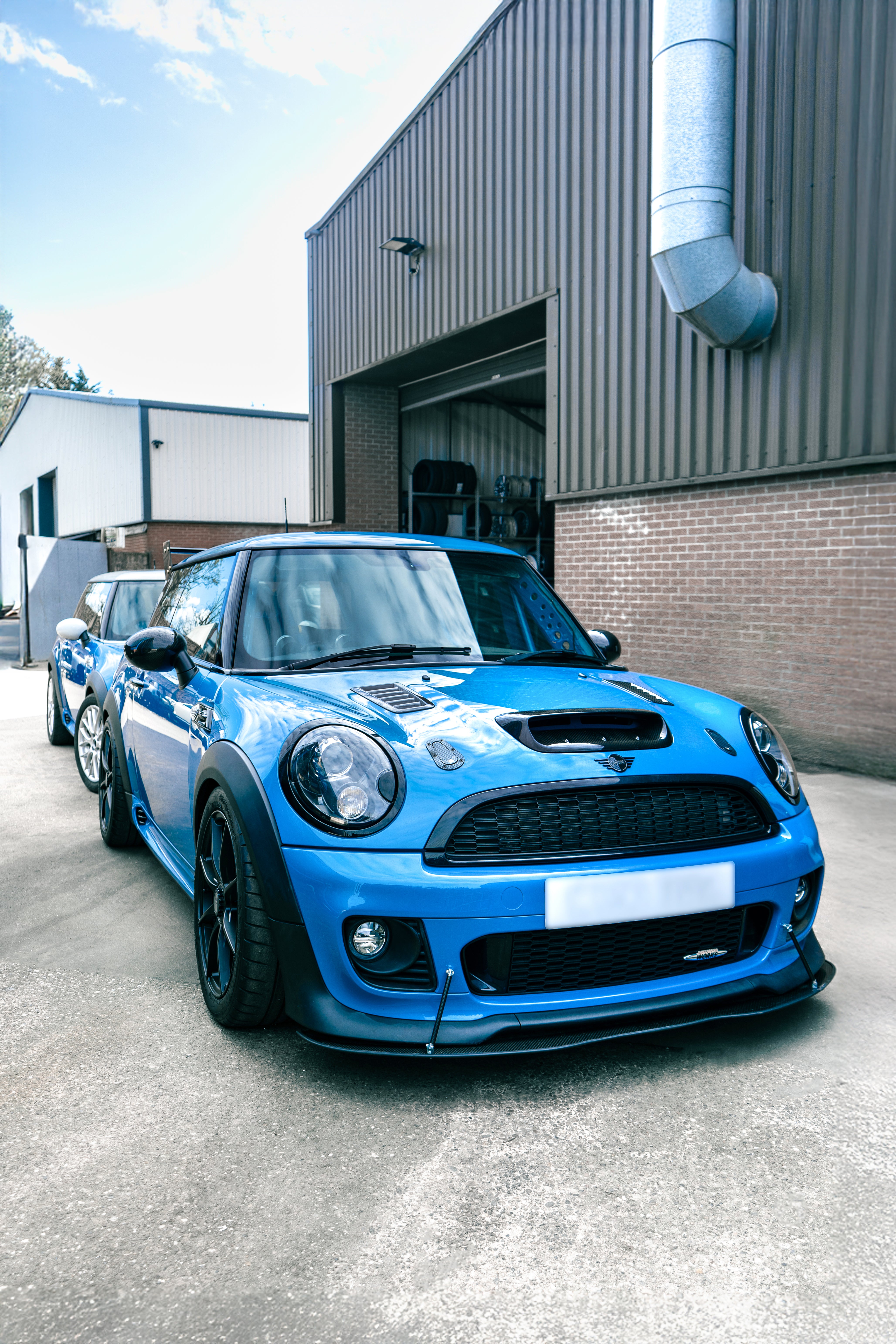

300bhp MINI R56 at Lohen Mini specialists

This race-ready R56 MINI JCW is now truly one a kind. Built with power and agility in mind but with an attention to detail that separates it from everything else at the track.

The MINI R56 JCW stage 3 remap, AEM intake kit, Airtec Intercooler, Owen Developments Hybrid Turbo, Lohen crate engine and Akrapovic exhaust see that oxygen and fuel are sucked in, and spat out, extracting 300BHP of power along the way!

Spec SHEET:

MINI R56 Hatch John Cooper Works
N18 Turbo charged 1.6 Lohen crate engine

Shop GEN2

Custom Lohen built MINI R56 John Cooper Works Specifications Sheet.
